Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Name: Alloy Steel Liner Castings 38M for Cement Mill Grinding Mill
Brand: Chen's Liner
Price: 1 USD

Quality Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill wholesale

Place of Origin : Jiangsu, China (Mainland)

Brand Name : Chen's Liner

Model Number : DF067

Price : Discuss in email

MOQ : 5 Ton/Tons

Port : Shanghai

Packaging Details : Packed by strong steel pallets; The load of each pallet is less than 2500kg; The castings will be lo

Delivery Time : It depends on the quantity to be ordered.

Payment Terms : L/C,T/T

Supply Ability : 4500 Ton/Tons per Year

Certification : ISO 9001:2008

Application : Grinding Mill,Cement Mill

Material : Steel

Dimensions : As per drawings

Hardness : More than HRC50

Impact Value : More than AK50J

Hardness difference from surface to core : Less than HRC2

Surface Quality : Good surface quality after shot blasting

Product Name : Cement Mill Liners

Contact Now

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Specification

1. Material:Cr-Mo Alloy Steel

2. Hardness:≥HRC50

3. Impact Value:More than AK50J

4. Application:Mining Industry

5. MOQ:5tons

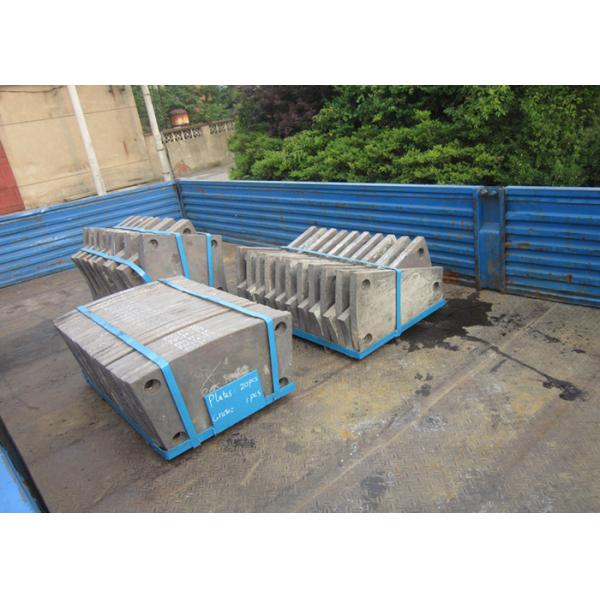

Product Photo

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Technical Parameters

Item	Cr-Mo Alloy Steel Ⅰ	Cr-Mo Alloy Steel Ⅱ	Cr-Mo Alloy Steel Ⅲ
C	0.3-0.5	0.65-0.90	0.4-0.9
Si	0.15-1.20	≤0.75	0.7-1.2
Mn	0.4-1.2	0.5-1.2	0.6-1.0
Cr	1.7-2.5	1.5-2.5	4.0-7.0
S	≤0.04	≤0.06	≤0.04
P	≤0.04	≤0.06	≤0.06
Mo	≤0.5	≤0.5	≤0.15
Cu	0.1-0.6	≤0.25	0.2-0.4
Ni	≤0.5	≤0.3	0-0.3
Re	≤0.02	≤0.02	≤0.02
Equivalent Specification	DL/T 681-1999 GB/T26651-2011	AS2074L2B Mod	DL/T 681-1999
Material Type	Martensite Steel	Martensite or Pearlitic Cr Mo Steel	Martensite Steel
Hardness	HRC≥48	HB470&HB321-370	HRC≥50
Impact Value	AK≥40J	-	AK≥10J

Production Facilities

1T,1.5T,3T,5T,12T,15T

Induction Electrical Furnace Heat Treatment Electrical Furnace

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Inspection Facilities

Spectrometer Portable Hardness Tester

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

UT Test Electronic Metallographic Microscope

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Honor

Alloy Steel Liner Castings 3.8M for Cement Mill / Grinding Mill

Our Services

We supply the following services:
1. Production of qualified wear and heat castings;
2. Design and installation of the boltless mill liners;
3. Consulting service of material selection of the mill liners under specific working condition to achieve

longer service life;
4. Consulting service of production & fineness improvement of grinding mills.
5.We can provide OEM/ODM for our clients.
